BMS JB4 stealth mounting bracket

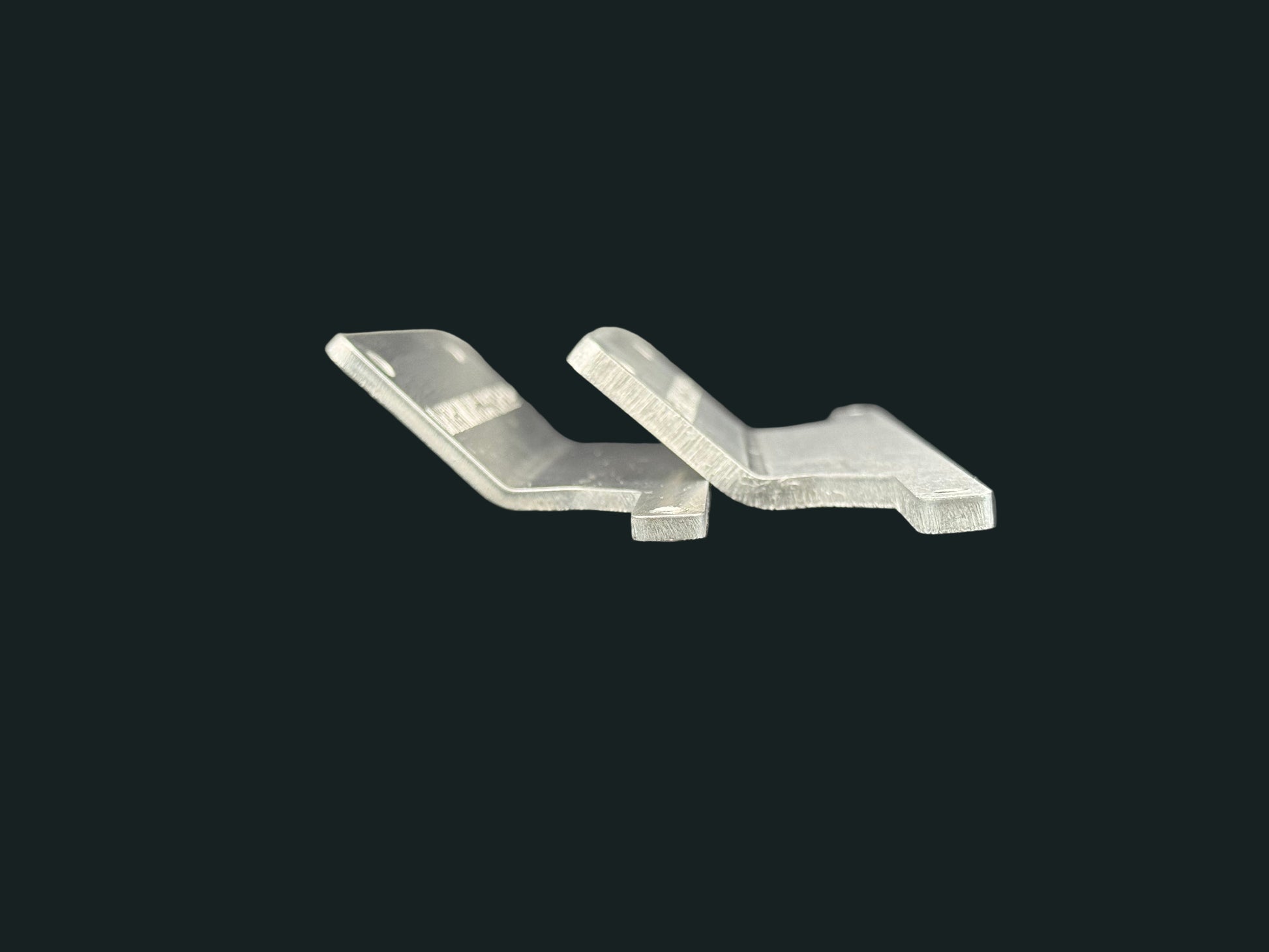

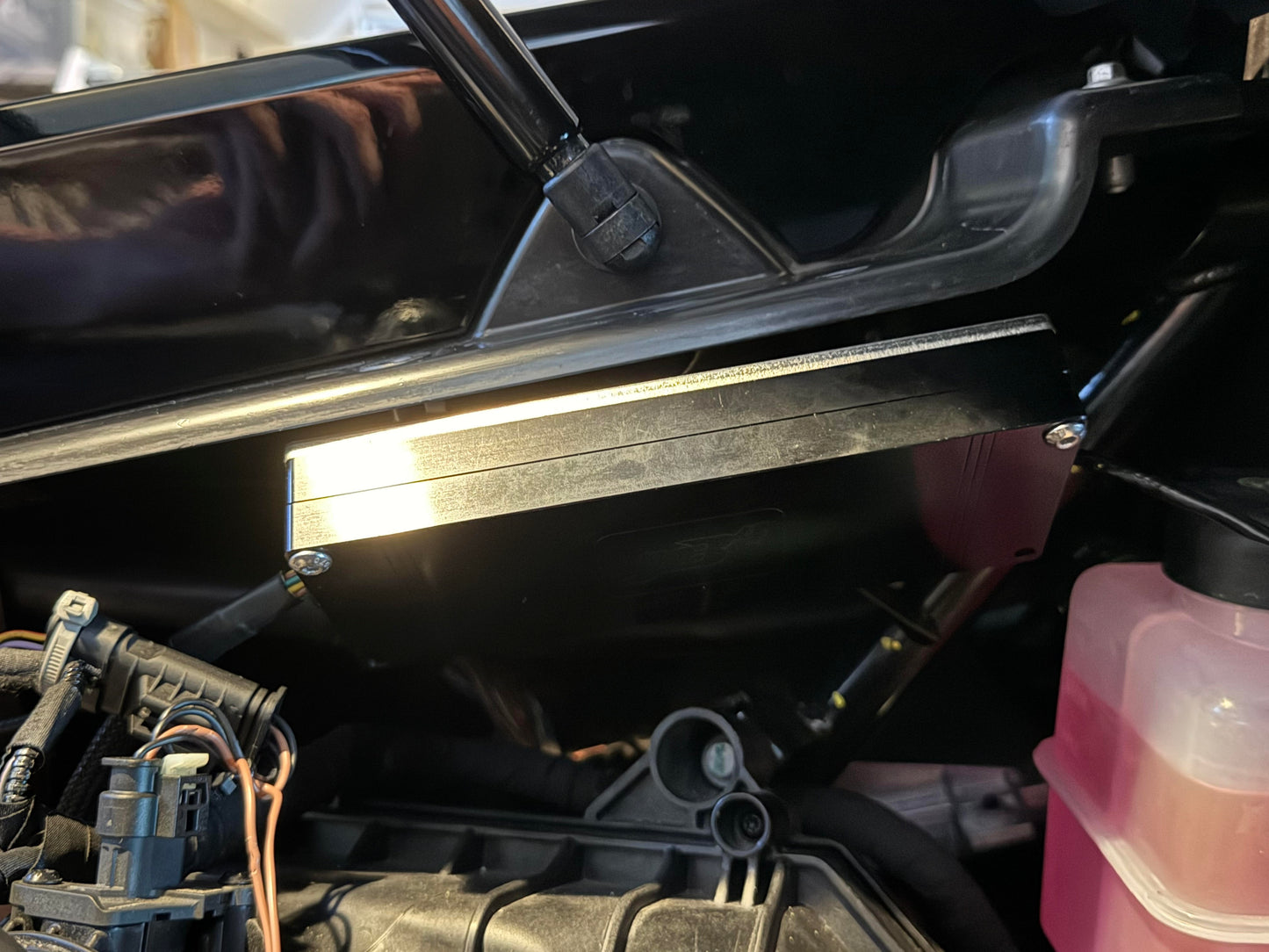

Bracket mounts to the left side vent support inside the engine bay.

Removal of the left side engine trim cover is required*

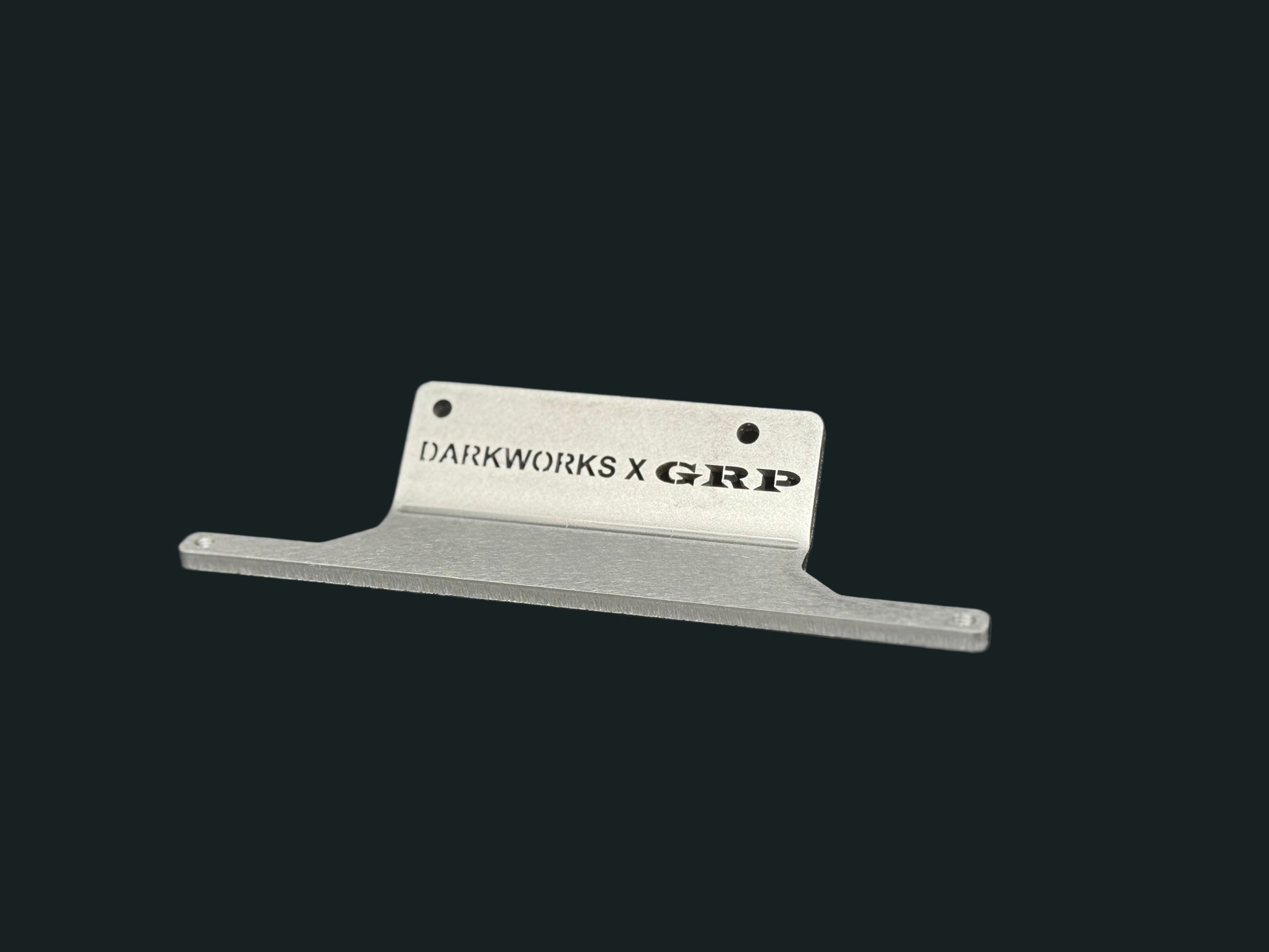

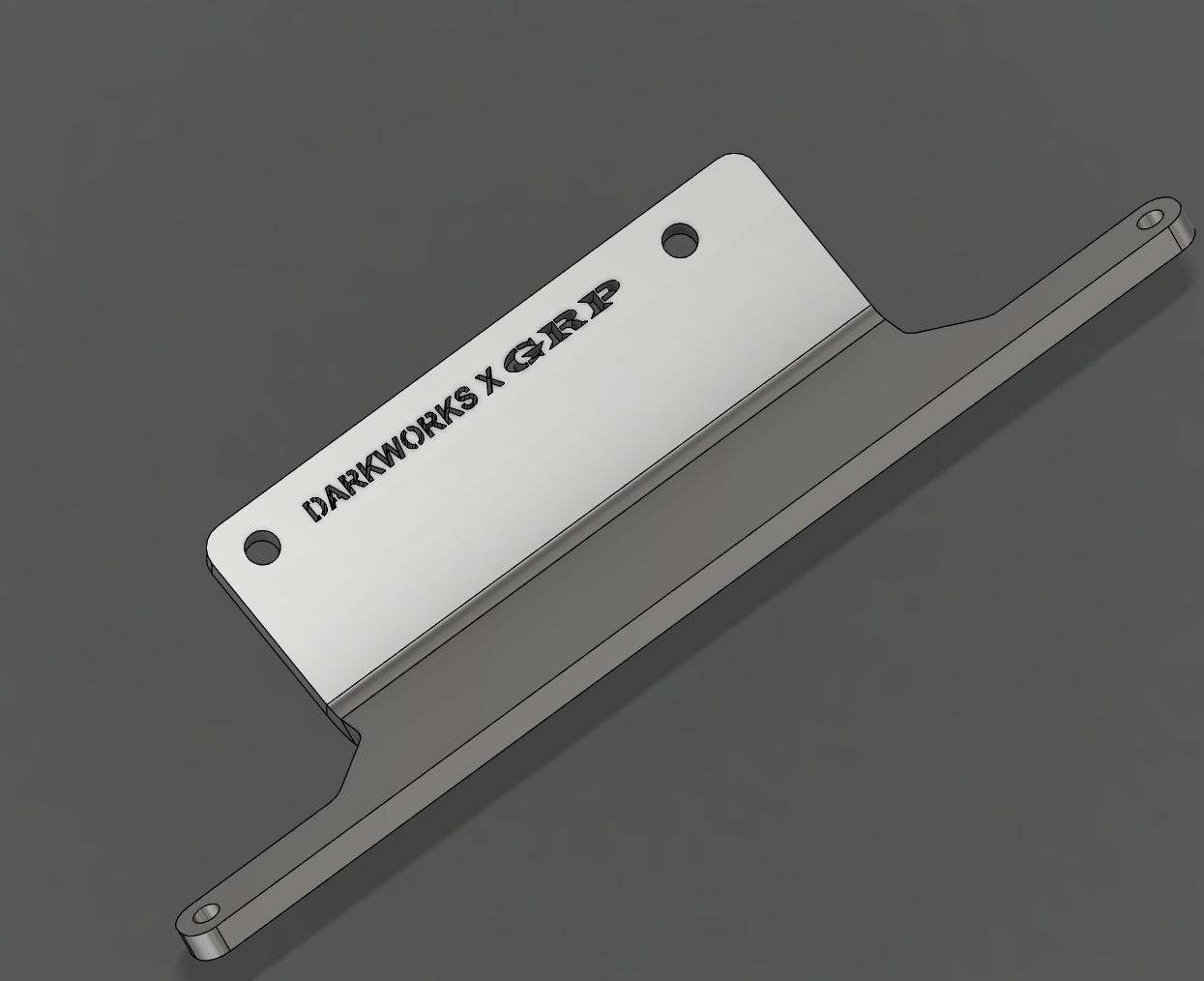

Prototype pictured, final appearance may differ*

Bracket install instructions: V6/i4

Tools needed - 7, 8mm socket stubby ratchet, and 3, 4mm Allen keys.

Start by removing the engine cover(s).

Unscrew the left side vent cover. there are 5 screws all 4mm drive size. one screw has a washer that is meant for the hole closest to the boot. Do not lose it.

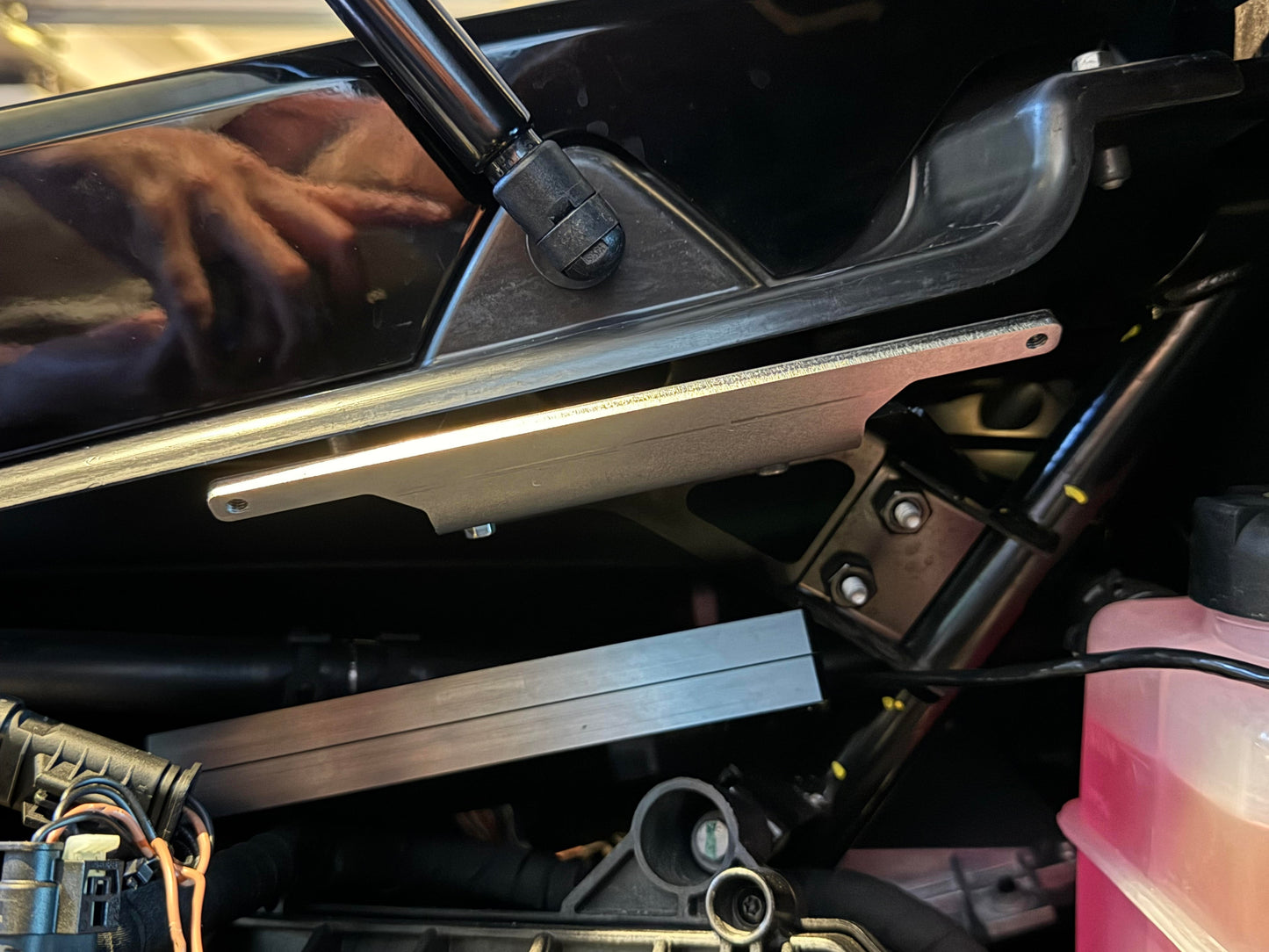

Remove the 2 M5x12mm hex flange bolts and install bracket with the supplied 2x zinc plated class 10.9 steel M5x16mm hex flange bolts.

Finally secure the BMS JB4 enclosure to the bracket using the included 2x BHCS Mx30mm screws 3mm drive size.*

*BE SURE TO NOT OVER TORQUE THESE FASTENERS AS YOU WILL STRIP THE ALUMINUM THREADS! adding some blue Loctite to the last 4-5mm of thread is recommended.
